Proteomic analysis of Chromobacterium violaceum and its adaptability to stress

  • Diogo Castro1, 5,
  • Isabelle Bezerra Cordeiro2, 5,
  • Paula Taquita1,
  • Marcos Nogueira Eberlin2,
  • Jerusa Simone Garcia2,
  • Gustavo Henrique M. F. Souza3,
  • Marco Aurélio Zezzi Arruda2,
  • Edmar V. Andrade5,
  • Spartaco A. Filho5,
  • J. Lee Crainey1,
  • Luis Lopez Lozano4,
  • Paulo A. Nogueira1 and
  • Patrícia P. Orlandi1Email author
BMC Microbiology201515:272

https://doi.org/10.1186/s12866-015-0606-2

Received: 22 January 2015

Accepted: 24 November 2015

Published: 1 December 2015

Abstract

Background

Chromobacterium violaceum (C. violaceum) occurs abundantly in a variety of ecosystems, including ecosystems that place the bacterium under stress. This study assessed the adaptability of C. violaceum by submitting it to nutritional and pH stresses and then analyzing protein expression using bi-dimensional electrophoresis (2-DE) and Maldi mass spectrometry.

Results

Chromobacterium violaceum grew best in pH neutral, nutrient-rich medium (reference conditions); however, the total protein mass recovered from stressed bacteria cultures was always higher than the total protein mass recovered from our reference culture. The diversity of proteins expressed (repressed by the number of identifiable 2-DE spots) was seen to be highest in the reference cultures, suggesting that stress reduces the overall range of proteins expressed by C. violaceum. Database comparisons allowed 43 of the 55 spots subjected to Maldi mass spectrometry to be characterized as containing a single identifiable protein. Stress-related expression changes were noted for C. violaceum proteins related to the previously characterized bacterial proteins: DnaK, GroEL-2, Rhs, EF-Tu, EF-P; MCP, homogentisate 1,2-dioxygenase, Arginine deiminase and the ATP synthase β-subunit protein as well as for the ribosomal protein subunits L1, L3, L5 and L6. The ability of C. violaceum to adapt its cellular mechanics to sub-optimal growth and protein production conditions was well illustrated by its regulation of ribosomal protein subunits. With the exception of the ribosomal subunit L3, which plays a role in protein folding and maybe therefore be more useful in stressful conditions, all the other ribosomal subunit proteins were seen to have reduced expression in stressed cultures. Curiously, C. violeaceum cultures were also observed to lose their violet color under stress, which suggests that the violacein pigment biosynthetic pathway is affected by stress.

Conclusions

Analysis of the proteomic signatures of stressed C. violaceum indicates that nutrient-starvation and pH stress can cause changes in the expression of the C. violaceum receptors, transporters, and proteins involved with biosynthetic pathways, molecule recycling, energy production. Our findings complement the recent publication of the C. violeaceum genome sequence and could help with the future commercial exploitation of C. violeaceum.

Keywords

Chromobacterium violaceum MALDI-tof Stress-conditions Biosynthetic pathways Transporters Receptors

Background

Chromobacterium violaceum is a soil and water borne Gram-negative β-proteobacterium that is found in tropical and subtropical regions and produces the intense purple pigment violacein [1, 2]. Although human infections with C. violaceum have been reported worldwide (reviewed in [3, 4]) opportunistic infections caused by the species are rare and research interest in the species has historically focused on its potential biotechnological and pharmaceutical applications [59]. Prior to the publication of the complete C. violaceum genome, most research was centered on its colored pigment violacein, which is an amino acid chain with antimicrobial and dermatological properties that the bacteria secretes. However, since the publication of the genome of C. violaceum, which revealed the existence of a diverse range of genes that could be involved in a variety of biotechnologically-relevant metabolic pathways, research interest in the species has broadened.

Analysis of the C. violaceum genome has identified genes involved in alternative pathways for mercury-free gold-solubilization and energy production and genes that have the potential to be involved with the decomposition of plastics as well as genes associated with halogenated compound production pathways, the existence of which suggests that C . violaceum could play a role in bioremediation of contaminated soils [6, 7]. Similarly, genomic analysis has also revealed the existence of genes likely to be involved with the bacteria’s response to heat-stress response and an extensive repertoire of genes likely to be related to the ability of C. violaceum to adapt to a wide range of environmental conditions, such as UV radiation [1, 10, 11].

Although stress-related gene pathways are less directly connected with biotechinologically exploitable functions than some of the other recently identified genes, understanding how these stress-related genes function and are regulated could nevertheless prove useful for the future manipulation and commercial exploitation C. violaceum.

Chromobacterium violaceum can be found naturally occurring in a diverse range of environmental conditions. Some strains of C. violaceum grow naturally in tropical areas, whereas others have been isolated in Antarctica [12, 13]. In the Brazilian Amazon region, C. violaceum is a major component of the tropical soil microbiota, and is also found abundantly in the Rio Negro river [2, 5, 6, 14, 15]. Laboratory studies have illustrated the remarkable adaptability of C. violaceum to changes in environmental conditions, like iron influence and stressful growth temperatures, to determine the specific enzymes and elements involved in the genetic regulation [15, 16].

Building on the recent discoveries from the genome C. violaceum project, this study examined the protein expression patterns of C. violaceum when it is grown under pH stress and nutrient-starvation conditions. Raw protein extracts obtained from the various cultures have been ran on SDS-PAGE gels to produce stress-related protein expression profiles. The Intensities of protein spots observed in these 2-DE gels were assessed via comparison with a reference gel and certain spots were selected for analysis. Mass spectrometry was performed to identify whether differential protein profiles might reveal information concerning the strategies that C. violaceum uses to adapt to stress.

Methods

Bacteria growth and protein extraction

Chromobacterium violaceum strain ATCC12472 was reactivated in LB broth under gentle agitation, and streaked onto LB-agar plates to ensure its purity. A single colony was grown at 35 °C using the same LB broth as the original source. In the pH stress assays, a small aliquot was transferred in 100 ml of LB broth adjusted to low (4.0); middle (7.0) or high (9.0) pH. In the nutrient-starvation stress assays, a small aliquot was transferred on minimal salts microbial growth medium (M9 medium, Sigma-Aldrich, Brazil). After 7 h under gentle agitation, the bacterial cultures were harvested by centrifugation at 12,000 g for 15 min at 4 °C and washed in 75 mM Tris–HCl pH 7.0 buffer. A hundred milligrams of bacterial pellet was washed twice in 1 mL of Milli-Q water with 2 mM PMSF (Phenylmethylsulfonyl Fluoride, Thermo Scientific) and a Protease Inhibitor Cocktail (PIC - Amersham Bioscience) following manufacturer recommendations. The aliquots were stored at −80 °C prior to use.

The stored bacterial pellet was lysed in IPG buffer (Amershan Bioscience) composed of PIC, 8 M urea, 2 % [(3-cholamidopropyl)-dimethylammonio]-1-propanesulfonate (CHAPS), 100 mM ditiotreitol (DTT) and 80 mM citric acid. After centrifugation at 12,000 g for 20 min at 25 °C, the lysates were precipitated with 500 μL of acetone for 1 h at room temperature, and centrifuged at 12,000 g for 10 min at 25 °C to remove the cell debris. The precipitates were washed three times in acetone (80 %) and dried at room temperature. Total protein was quantified using a commercial colorimetric kit based on the Lowry method following the manufacturer’s recommendations (BioAgency), and stored at −20 °C until the isoelectric focusing experiments were performed.

2-DE gel and spot quantification

The first-dimension separation began with isoelectric focusing (IEF) using the IPGPhor3, an integrated IEF-system (GE Healthcare). In brief, 250 μg of protein were rehydrated in DeStreak Rehydration Solution (Amersham Bioscience) in 0.5 % IPG buffer (GE Healthcare). Samples were applied to a pH 3–11 NL, immobilized pH gradient (IPG) by passive rehydration using the IPGPhor3 for 10 h at 20 °C. The focusing conditions were: 150 V (2 h), 300 V (2 h), 1000 V (gradient for 4 h), 8000 V (gradient for 2 h), and 8000 V (2 h). In second-dimension separation, SDS-PAGE electrophoresis, IPG strips were soaked with equilibration buffer 1 (75 mM Tris–HCl buffer pH 8.8, 6 M urea, 2%SDS, 29.3 % glycerol, 1 % DTT) for 8 min and removed, and then soaked in equilibration buffer 2 (6 M urea, 2 % SDS, 29.3 % glycerol, 2.5 % iodoacetamide, 75 mM Tris–HCl pH 8.8) for 12 min. Lastly, the IPG strips were soaked in 75 mM Tris–HCl pH 6.8 for 2 min and placed on 12.5 % (w/v) polyacrylamide resolving gels in a SE600Rub System (GE Healthcare) under 10 mA/gel for 45 min. The polyacrylamide gels were fixed using 10 % acid acetic and 40 % methanol, followed by staining with Colloidal Coomassie Blue (8 % ammonium sulfate, 0.8 % phosphoric acid, 0.08 % Coomassie Blue G-250 and 20 % methanol) [16]. Gel images were captured by scanning (Image Scanner, GE Healthcare), and analyzed by Image Master Platinum software (Version 6). Three reproducible gels (over 70 % in similarity) were produced to correspond with at least two independent extraction procedures from each experimental condition [16]. The spot detection parameters were determined by the ImageMaster Platinum software to detect spots in non-DIGE gels. In brief, ImageMaster Platinum software used a smooth-by-diffusion algorithm to detect the minimal area defining a spot. The software used the saliency parameter, expressed in number of pixels, to estimate the threshold that distinguishes a real spot from the background of the gel. Areas were then split into as many overlapping spots as possible. The spots were quantified automatically based on two final parameters, intensity and area. The spot intensity was relative to background; a minimum pixel value above the spot neighborhood was defined as a unit of intensity. Finally, the ImageMaster quantified the intensity (I) of a spot based on the pixel units per central area, corresponding to 75 % of an encircled spot. To assess the influence of pH and nutrient-starvation stresses on protein expression, the Intensities of 15 spots observed in all 2-DE gels were assessed via comparison with a reference gel and certain spots were selected for analysis.

Preparation of spots to mass spectrometry

For the mass spectometry analysis, several spots were selected based on diffrrences in intensity between spots grown under pH 4.0, pH 9.0, or M9 medium, and spots from the reference gel (grown under pH 7.0.). The selected spots were excised from the polyacrylamide gels, and disrupted in order to digest proteins prior to mass spectrometry. In brief, the extracts were digested with Trypsin Porcine Pancreas (Sigma) using the Montage In-Gel DigestZP Kit (ZipPlate, Millipore, USA) following the manufacturer’s recommendations.

Mass spectrometry

Trypsin-digested samples were applied to the microplate using the dried droplet method. A matrix solution was prepared using α-cyano-4-hydroxycinnamic acid in a 1:1 (v/v) acetonitrile/H2O solution, containing 0.1 % (v/v) TFA (Trifluoroacetic acid). The matrix was added to samples with a total volume of 1.2 μL and allowed to dry at room temperature [17].

The mass spectra were acquired in a MALDI Q-TOF Premier mass spectrometer (Waters, Micromass, Manchester, UK). The mass spectra were obtained with a solid- state laser in a positive mode (LDI+) using the following parameters: laser firing rate and repetition rate of up to 200 Hz, 100 shots per spectra; laser wavelength 355ηm, pulse width 3ηs, pulse energy 100 μJ, peak power 34 kW; beam divergence and full angle <2 mrad. Real-time calibration was performed with Lock Mass correction using a mixture of PEG (poly[ethylene glycol]) oligomers (PEG 600, 1000, 1500 and 2000). The main parameters were: mass range from 880.0 to 4000.0 Da, peak detection threshold for MS/MS of 150.0, mass threshold of 80.0 Da, inter-scan time of 0.1 s, resolution of 10,000 in “V” mode, trigger threshold of 700 mV, signal sensitivity of 80 mV, and microchannel plate photomultiplier (MCP) set to 2200 V. Each spectrum was collected in a 1 s scan, and the spectra were accumulated for 2 min. The instrument was controlled by Mass Lynx v.4.1 software. Protein identification was achieved via database search using the peptide peak (masses and intensities) for mass spectra post-processing through Protein Lynx Global Server v.2.3 (Waters Corporation, UK). The mono-isotopic peak lists were processed using the following parameters: one missed cleavage, tryptic digestion, carbamide methylation and cysteine modification with search error tolerance set at 5 ppm with a [M + hrs]+ charge state [18]. The protein data was compiled by Swiss Prot using information about the C. violaceum genome from the Expasy Databank. The protein data was submitted to the Protein Lynx Global Server program [1921].

Results and discussion

Chromobacterium violaceum growth patterns under stress

Chromobacterium violaceum (ATCC12472) was grown under gentle agitation at 35 °C for 34 h to establish the exponential and stationary phases of a reference culture and a set of three differently stressed cultures (Fig. 1). The growth curves of C. violaceum displayed the same behavior in all conditions: growth entered the exponential phase after 4 h, and this phase persisted until 19 h, at which point the stationary phase started. As expected, C. violaceum grew best in the pH neutral nutrient-rich (LB) media. Under these reference conditions the bacteria culture exhibited a dark-violet metallic sheen, the optical density of which was observed to be 17 units at 590 nm. Under nutrient-starvation and pH stress, C. violaceum lost its purplish pigmentation. Despite the remarkable adaptability of C. violaceum to environmental changes, pH stress proved detrimental to its growth. Under pH stress, C. violaceum exhibited low growth even in rich medium. The growth patterns of C. violaceum observed in this study are in agreement with the growth curves of other species submitted to harsh environmental conditions [22, 23].
Fig. 1

Growth curve of Chromobacterium violaceum: Long cultures of C. violaceum grown in rich medium (LB) and nutrient-poor medium (M9) for 34 h and rotated at 35 °C to determine the extent of the exponential and stationary phases. Asterisk: The time chosen as representative of the exponential growth phase in all cases

Chromobacterium violaceum stress-related protein expression profiles

Table 1 shows the total protein extract obtained from 100 mg of bacterial cells and shows that overall protein content of C. violaceum is higher in stressed cultures than it is in unstressed cultures. Spot counts were compared in 2-DE to assess the effect of pH and nutrient-starvation stress on protein expression. Although the total protein production was highest in stressed cultures, C. violaceum growth in reference conditions, showed by far the greatest diversity in the types of protein expressed (see Fig. 2a). More than 300 spots were identifiable from C. violaceum cultures grown under these reference conditions (Fig. 2a). Chromobacterium violaceum growth in pH 4.0 produced profiles with 238 identifiable spots, and growth in pH 9.0 resulted in 244 such spots. Chromobacterium violaceum 2-DE protein profiles for bacteria grown under nutrient-starvation also contained 238 identifiable spots. In some cases, distinct stress-specific spot profiles were clearly identifiable and maintained over time (see Additional file 1: Figure S1). Similar data have been observed with Brucella suis (B. suis) when it was submitted to long-term nutrient-starvation. For B. suis less than half the 2-DE spots that could be identified in reference culture profiles could be seen in stressed culture profiles-- suggesting that under stress, B. suis reduces the diversity of the proteins it expresses even more markedly than C. violaceum [22]. Interestingly, nutritional stress profiles were different from pH stress profiles, suggesting that the C. violaceum protein expression response to stress is tailored to specific environmental stresses [6, 7, 10].
Table 1

Total protein mass obtained from a 100 mg of bacterial pellet after 7 h of growth

Culture conditions

Total protein mass (μg)

Number of spots identifiable in 2-DE

LB pH 7.0

24.1 ± 0.3

>300

LB pH 4.0

24.0 ± 0.2

238

LB pH 9.0

23.0 ± 0.3

244

M9 pH 7.0

35.8 ± 0.3

238

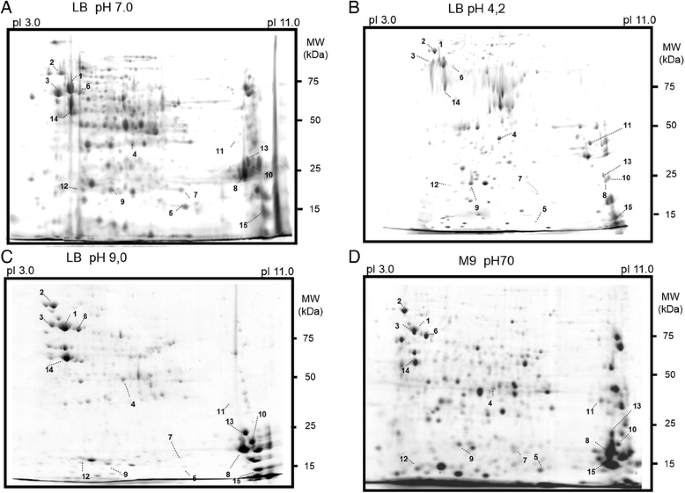

Fig. 2

2-D gel profiles of C. violaceum expressed proteins under stresses. C. violaceum was cultured for 7 h of exponential growth under stress-conditions: a Luria Bertani (LB) medium at pH 7.0 (defined as reference gel); b LB at pH 4.0; c LB at pH 9.0 and d M9 minimum medium at pH 7.0. The expressed proteins were submitted to isoelectric focusing on pH 3.0–11.0 gradient strips and split onto 12 % polyacrylamide gels. Selected spots for each condition (numbered 1 to 20) were identified by MALDI/MS

To better understand which proteins were influenced by pH and nutrient-starvation stresses, spots in 2-DE with different pixel units were selected for mass spectrometry. Fifty-five spots were submitted for comparison against the mass spectrometry databank, and 43 of them were identified (Table 2). Despite the advanced state of proteomic and genomic technologies, we were unable to classify 12 proteins [19, 20, 23]. Interesting most of the spots that were selected contained just a single protein (Fig. 2, Table 2).
Table 2

Protein identification of C. violaceum by MALDI/MS

Description

Theorical

Experimental

Score

mW (Da)

pI

mW (Da)

pI

C.violaceum 50S ribosomal L1 proteina

22,226

10.3301

22,240.16

9.90

8.2941

C.violaceum 50S ribosomal L3 proteina

23,946

10.1124

23,961.41

9.66

8.2941

C.violaceum 50S ribosomal L4 proteina

22,874

10.3385

22,888.02

9.93

8.2941

C.violaceum 50S ribosomal L5 proteina

20,292

9.7899

20,305.55

9.44

8.2941

C.violaceum 50S ribosomal L6 proteina

18,784

10.1521

18,795.70

9.68

8.2941

C.violaceum acetyl-CoA acetyltransferase a

40,094

6.3565

40,118.74

6.33

8.2941

C.violaceum acuC-aphA family histone deacetylase

32,920

5.7805

32,940.88

5.73

8.2941

C.violaceum alpha chain nitrate reductase

137,284

6.2869

137,371.63

6.28

8.2941

C.violaceum amino acid permease

46,898

7.7271

46,928.90

8.21

8.2941

C.violaceum arcA arginine deiminase

46,177

5.9075

46,206.68

5.93

8.2941

C.violaceum beta subunit ATP synthase

50,024

4.9332

50,055.78

5.10

8.2941

C.violaceum chromate ion transporter protein

45,072

11.0618

45,100.87

10.58

8.2941

C.violaceum depB protein

162,060

4.7681

162,162

4.81

8.2941

C.violaceum dismutase a

21,576

5.8577

21,589.99

5.86

8.2941

C.violaceum dnaK chaperone protein a

69,079

4.7521

69,121.62

4.94

8.2941

C.violaceum elongation factor P protein

20,893

4.5956

20,906.61

4.79

8.2941

C.violaceum factor Tu

43,045

4.9378

43,071.71

5.11

8.2941

C.violaceum flagellar hook protein E

43,040

4.3434

43,066.86

4.54

8.2941

C.violaceum fructose bifosfato aldolase a

38,294

5.5995

38,318.41

5.56

8.2941

C.violaceum Glutaminyl-tRNA synthetase

64,332

5.395

64,371.73

5.45

8.2941

C.violaceum groel 2 chaperonin a

57,382

4.8968

57,417.73

5.09

8.2941

C.violaceum haloacid dehalogenase

26,514

5.798

26,530.92

5.85

8.2941

C.violaceum homogentisate 1 2 dioxygenase

42,386

5.8835

42,413.36

5.89

8.2941

C.violaceum large subunit Glutamate synthase

161,839

5.9496

161,940.51

6.02

8.2941

C.violaceum membrane protein

24,587

9.7804

24,604.19

9.69

8.2941

C.violaceum methyl accepting transducer chemotaxis transmembrane protein

59,066

5.2366

59,102.16

5.37

8.2941

C.violaceum multidrug efflux protein a

49,197

9.8397

49,229.02

9.72

8.2941

C.violaceum multidrug resistance transmembrane protein

54,368

10.8052

54,402.42

10.57

8.2941

C.violaceum ornithine carbamoyl transferase

37,739

5.8079

37,763.68

5.96

8.2935

C.violaceum oxaA Inner membrane protein

60,494

9.3199

60,532.79

9.09

8.2935

C.violaceum phasin protein a

19,460

7.7754

19,471.52

6.84

8.2941

C.violaceum phbF protein

21,440

4.7708

21,454.60

4.97

8.2941

C.violaceum phosphoenolpyruvate phosphotransferase a

89,323

5.2925

89,378.22

5.43

8.2941

C.violaceum pily1 related type 4 fimbrial biogenesis protein

111,408

4.9526

111,476.45

5.03

8.2941

C.violaceum putative protein

59,467

9.8919

59,503.50

9.74

8.2941

C.violaceum resistance protein

42,838

9.2531

42,866.11

9.19

8.2941

C.violaceum rhs related protein

123,858

5.2976

123,934.25

5.42

8.2941

C.violaceum secretion protein

45,487

10.2636

45,482.62

9.97

8.2941

C.violaceum sodium dependent transporter protein

51,277

9.9326

51,310.86

9.63

8.2941

C.violaceum tail fiber related protein

67,404

5.0552

67,445.36

5.23

8.2839

C.violaceum TonB dependent receptor

85,159

6.6671

85,211.14

6.61

7.6150

C.violaceum transmembrane drug efflux pump protein

111,151

9.4457

111,220.34

9.27

8.2914

C.violaceum triacylglycerol lipase

32,150

7.9748

32,170.45

7.73

8.2931

C.violaceum uncharacterized protein

19,630

5.4373

19,641.70

5.61

8.2941

C.violaceum uncharacterized protein

27,304

5.9343

27,321.45

5.71

8.2941

C.violaceum uncharacterized protein

59,467

9.8919

59,503.50

9.74

8.2941

C.violaceum uncharacterized protein

20,756

6.1716

20,769.32

6.15

8.2930

C.violaceum uncharacterized protein

21,227

6.7355

21,240.96

6.37

8.2941

C.violaceum uncharacterized protein

23,771

6.343

23,786.15

6.12

8.2941

C.violaceum uncharacterized protein

37,473

8.2407

37,465.53

8.43

8.2941

C.violaceum uncharacterized protein

60,019

4.6575

60,054.62

4.84

8.2941

C.violaceum uncharacterized protein

92,113

5.298

92,138.40

5.42

8.2941

C.violaceum uncharacterized protein

19,959

8.9654

19,972.03

7.98

8.2941

C.violaceum uncharacterized protein

60,732

9.6696

60,769.16

9.50

8.1529

C.violaceum uncharacterized protein

101,364

10.8481

101,425.36

10.38

8.2941

Note: MW molecular weight and Daltons (Da) the mass unity, pI isoelectric point. asame proteins shared in Cordeiro and collaborators [13]

Some of the identifiable proteins seem to be correlated with nutrient-starvation survival strategies including biosynthesis, molecules recycling and energy production [22]. The identified spots included proteins belonging to energetic metabolism, elements of biosynthetic pathways like chaperones, ribosomal proteins, transporters, and receptors (see Table 2). Fifteen spots corresponding to 15 characterized proteins were classified into three major functional groups that were analyzed quantitatively (See Fig. 3a–c). The first functional group, referred to here as the “molecule recycling group”, was represented with just one protein: the polyhydroxy butyrate protein (PhbF) (Fig. 3a). The second group, referred to here as the “biosynthesis protein group” was comprised of proteins, such as elongation factors and ribosomal subunits (Fig. 3b). The third group protein group was comprised of proteins related to energy production and metabolism and is referred to here as the “energy related” protein group (Fig. 3c).
Fig. 3

Identification of expressed proteins by MALDI/MS. C. violaceum proteins under pH stress: a Proteins associated with bacterial responses; b Biosynthesis related proteins; c Energy and metabolism related proteins

Fig. 4

Spectrum of stress-specific proteins of Chromobacterium violaceum. Proposition of coordinated responses based on expressed proteins by C. violaceum

Stress-related expression of the molecule recycling protein PhbF

The C. violaceum PhbF protein is probably involved in molecule recycling and, in this study, appeared to be produced in lower quantities under stress than when it was grown in reference conditions. The PhbF is a DNA binding protein that belongs to a family of polyhydroxy alkanoate synthesis repressors that produce polyhydroxy butyrate for intracellular granular storage [24]. In the exponential phase, C. violaceum reduced expression of this repressor probably to allow the production of PHB under low levels of nitrogen, phosphates or oxygen possibly because of its ability to store nutrients even in adverse environments [2426].

Stress-related expression of biosynthesis related proteins

Some of the proteins with stress-associated expression patterns seem to be correlated with biosynthesis of amino acids and nucleic acids. The chaperones DnaK (heat shock protein), GroEL-2 and Phasin are both highly conserved proteins involved in biosynthesis and were both more abundant in C. violaceum cultures grown under stress conditions. DnaK, phasin, chaperonin GroEL-2 function as accessory proteins in chaperone machines [6, 16, 2729] and increased chaperone expression was associated with stress tolerance and response to a high concentration of iron or carbon/energy or nitrogen nutrient-starvation [15, 30]. Our data is in agreement with the role of these proteins in protection against damage caused by pH and nutrient-starvation stresses [3134]. The Rhs-related proteins (Rearrangement hotspot – related protein) are widely distributed in bacteria and eukaryotes and it has been proposed that expression of the Rhs components increases ribosomal gene expression [3537]. In the exponential phase, C. violaceum showed reduced expression of Rhs-related proteins which would repress protein biosynthesis even in adverse environments. The synthesis of EF-Tu (elongation factor thermo unstable) and EF-P (Bacterial elongation factor P) appeared to be similar in the reference and nutrient-starved cultures, but appeared to be reduced under pH stress. EF-Tu is important for translational accuracy in protein synthesis [3840]. In a study on the stress resistance of Vibrio cholerae, the stabilization of ET-Tu with heat-shock chaperone demonstrated that it is a highly sensitive protein that significantly enhances the stress resistance of this bacterium [40]. It appears that EF-Tu acts as a down-regulator of translational control for most protein synthesis during nutrient-starvation while allowing the synthesis of nutrient-starvation-induced proteins [41, 42]. The down regulation of EF-P in nutrient-starvation and pH stress conditions suggests that C. violaceum’s protein expression maybe controlled by the same universal bacterial factor [39, 40, 42, 43]. Consistent with previous findings, a suite of ribosomal proteins were also observed to show stress-related expression patterns in C. violaceum. In this study, the synthesis of L6, L5, L3 and L1 ribosomal subunits we all observed to vary with stress conditions, supporting the notion that the bacteria’s core cellular mechanics are well-adapted to changes in nutrient and pH conditions. Chromobacterium violaceum’s increased synthesis of ribosomal L3 subunit, which has a role in minimizing protein miss-folding, is consistent with what has been demonstrated for other Gram-negative bacteria [44, 45]. Belonging to the large prokaryotic ribosomal subunit, the observed elevated nutrient-starvation-induced ribosomal L3 subunit production may be the bacteria’s response to sub-optimal protein folding conditions [6, 46]. Relative to the cultures grown under reference conditions, the synthesis of the other ribosomal subunits appears to be lower (see Fig. 3b), suggesting that C. violaceum reduces overall protein production as a response to stress. It is important to note, however, that the ribosomal protein spots are far more intense feature of stress profiles after 18 h of growth than they are after 34 h (see Additional file 1: Figure S1), suggesting their down-regulation is delayed and not an immediate shock-response to stress. This may help to explain why overall protein content was higher in nutrient starvation stress than in the reference culture (see Table 1) and may be a sign that the bacteria reduce overall protein production as an adaptation to stressful growth conditions, but that overall protein production increases initially as the bacteria transitions to its new harsher growth environment.

The color change noted for all stressed cultures of C. violaceum is almost certainly explained by the stressed-cultures’ loss of the violacein pigment. As the violacein of C. violaceuim is produced by the fusion of two tryptophan residues formed by decarboxylation, it can be seen as representing another biosynthethic pathway which is affected by stress and thus as a convenient indicator of biosynthetic activity [47]. Interestingly our study also noted a reduction of homogentisate 1,2-dioxygenase in all three stressed cultures, which maybe correlated with the bacteria’s stress-induced color change. Consistent with this notion, in other bacteria homogentisate 1,2-dioxygenase is known to catalyze the conversion of homogentisate to 4-maleylacetoacetate in the catabolism of aromatic rings [48].

Stress-related expression of proteins associated with energy production

The methyl-accepting chemotaxis protein (MCP) is a transmembrane sensor protein associated with the bacterial mechanisms which recruit cytoplasmic components of the signaling pathway for sensing and responding to chemical changes [49]. Meier and Scharf demonstrated that a MCP-S receptor protein of the free-living bacterium Sinorhizobium meliloti is usually weakly expressed under normal growth conditions and speculated that it might be up-regulated when the bacteria is in its natural symbiotic chemical environment [50]. Under stress conditions C. violaceum has reduced expression of MCP during the exponential growth phase (see Fig. 3a), which may be to avoid the synthesis of unnecessary proteins. Arginine deiminase (Fig. 3c) participates in arginine and proline metabolism related to adaptation to low pH environments. The arginine deiminase system was found to protect bacterial cells against the damaging effects of low pH [21]. Other examples of the arginine deiminase system protecting against low pH environments are seen in Listeria monocytogenes, which can survive in low-pH foods and pass through the gastric barrier of its host, and in the protection of oral bacteria from acid [51, 52]. In this study, the up-regulation of arginine deiminase should be considered an indication that C. violaceum can adapt to low pH conditions such as those found in the Negro River, which range from pH 3.8 to 4.9 [12, 53]. Synthesis of the ATP synthase β subunit in C. violaceum grown under stress was also seen to be elevated in this study (See Fig. 3c). In Escherichia coli and bovine mitochondria [48] this protein contributes to catalytic sites in regulation of ATP synthase activity. Similarly, ATP synthase β subunit was seen to have elevated expression under glucose privation in the human hepatocellular carcinoma cell line HepG2 [54]. From analysis of the B. suis proteome, an increase in β-ATP synthase expression was seen to be associated with nutrient-starvation conditions [22]. The results presented here thus suggest that ATP synthase β subunit of C. violaceum may have the same regulatory role for adapting to ATP limitation that it has been observed to have in other prokaryotic and eukaryotic cells alike [22, 48, 54].

Conclusions

Our data showed that under nutrient-starvation and pH stresses C. violaceum’s 2DE signatures are changed markedly. Under such stresses, C. violaceum was seen to increase its overall protein production, but appeared to reduce the diversity of proteins it synthesizes (Fig. 4). Our analysis of protein expression indicated that stress cues affect C. violaceum receptors, transporters, and proteins that effect energy consumption, biosynthesis and molecular recycling. Most ribosomal subunit protein production was reduced in all three stressed cultures of C. violaceum suggesting that the bacteria’s protein production and general biosynthesis is decreased as an adaptation to stressful growth conditions. Stressed cultures, however, also showed a notable increase in the production of the L3 ribosomal protein subunit, which probably helps the bacteria with sub-optimal protein folding conditions and could be taken as evidence that the metabolic machinery of the bacteria is capable of adapting to more hostile environmental conditions. In stressed cultures C. violaceum was noted to lose its distinctive color and to have reduced levels of homogentisate 1,2-dioxygenase, which is sometimes involved in catabolic biosynthetic colored pigment production. Our findings complement the recent publication of the C. violaceum genome sequence by enriching the available protein expression data and provide a valuable preliminary insight into the environmental adaptability of C. violaceum, which could help with the future commercial exploitation of C. violaceum.

Declarations

Acknowledgements

This study was supported by funding from CNPq and FAPEAM (Fundação de Amparo a Pesquisa do Estado do Amazonas). To GEPAM/Institute of Chemistry of Campinas State University that they did all mass spectrometry study as collaborator. DC, IBC and PT were supported by a Masters Scholarship from the Post-Graduate Program in Biotechnology of the Federal University of the Amazonas. PT was supported by a Masters Scholarship from the Post-Graduate Program in Immunology of the Federal University of the Amazonas and currently is a technologist granted by a scholarship fund of FIOCRUZ-AMAZONIA. JLC received financial support from FAPEAM.

Financial competing interests

This article was supported by the Proteome Network of Amazonas (Rede Proteomica do Estado do Amazonas) which had fund from CNPq, FINEP and FAPEAM (Fundação de Amparo a Pesquisa do Estado do Amazonas). The article-processing charge had funding from FAPEAM obtained by PAN in the Program PAPAC – 2013- FAPEAM.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Instituto Leônidas e Maria Deane – ILMD- Fiocruz
(2)
Universidade Estadual de Campinas, Institute of Chemistry, Thomson Mass Spectrometry Laboratory PO and Spectrometry, Sample Preparation and Mechanization Group (GEPAM)
(3)
Waters Corporation
(4)
Biotechnology Laboratory/ Universidade Federal do Amazonas
(5)
Universidade Estadual do Amazonas

References

  1. Reilly J, Pyne G. On the Pigment Produced by Chromobacterium violaceum. Biochem J. 1927;21:1059–64.PubMed CentralView ArticlePubMedGoogle Scholar
  2. Moss MO, and Ryall C. The genus Chromobacterium. M. Starr, H. Stolp, H. Truper, A. Balows, H. Schlegel (Eds.), In The Prokaryotes, Berlin: Springer-Verlag (1981), pp. 1355–1364Google Scholar
  3. de Siqueira IC, Dias J, Ruf H, Ramos EA, Maciel EA, Rolim A, et al. Chromobacterium violaceum in siblings, Brazil. Emerg Infect Dis. 2005;11:1443–5.View ArticlePubMedGoogle Scholar
  4. Teoh AY, Hui M, Ngo KY, Wong J, Lee KF, Lai PB. Fatal septicemia from Chromobacterium violaceum: case reports and review of the literature. Hong Kong Med J. 2006;12(3):228–31.PubMedGoogle Scholar
  5. Stephens C. Microbial genomics: tropical treasure? Curr Biol. 2004;14(2):R65–6. Review. PubMed.View ArticlePubMedGoogle Scholar
  6. Vasconcelos ATR, Almeida DF, Hungria M, Guimarães CT, Antônio RV, Almeida FC, et al. The complete genome sequence of Chromobacterium violaceum reveals remarkable and exploitable bacterial adaptability. Proc Natl Acad Sci U S A. 2003;100(20):11660–5.View ArticleGoogle Scholar
  7. Carepo MSP, Azevedo JSN, Porto JIR, Bentes-Sousa AR, Batista JS, Silva ALC, et al. Identification of Chromobacterium violaceum genes with potential biotechnological application in environmental detoxification. Genet Mol Res. 2004;3(1):181–94.PubMedGoogle Scholar
  8. Durán N, Menck CFM. Chromobacterium violaceum: A Review of Pharmacological and Industrial Perspectives. Crit Rev Microbiol. 2001;27(3):201–22.View ArticlePubMedGoogle Scholar
  9. Lopes SCP, Blanco YC, Justo GZ, Nogueira PA, Rodrigues FLS, Goelnitz U, et al. Violacein Extracted from Chromobacterium violaceum Inhibits Plasmodium Growth In Vitro and In Vivo. Antimicrob Agents Chemother. 2009;53(5):2149–52.PubMed CentralView ArticlePubMedGoogle Scholar
  10. Hungria M, Nicolás MF, Guimarães CT, Jardim SN, Gomes EA, Vasconcelos ATR. Tolerance to stress and environmental adaptability of Chromobacterium violaceum. Genet Mol Res. 2004;3(1):102–16.PubMedGoogle Scholar
  11. Pereira M, Parente JA, Bataus LAM, Cardoso DDP, Soares RBA, Soares CMA. Chemotaxis and flagellar genes of Chromobacterium violaceum. Genet Mol Res. 2004;3(1):92–101.PubMedGoogle Scholar
  12. Efthimion MH, Corpe WA. Effect of cold temperatures on the viability of Chromobacterium violaceum. Appl Microbiol. 1969;17(1):169–75.PubMed CentralPubMedGoogle Scholar
  13. Kriss AE, Mitskevich IN, Rozanova EP, Osnitskaia LK. Microbiological studies of the Wanda Lak (Antarctica). Mikrobiologiia. 1976;45:1075–81.PubMedGoogle Scholar
  14. Silva R, Araripe JR, Rondinelli E, Ürményi TP. Gene expression in Chromobacterium violaceum. Genet Mol Res. 2004;3(1):64–75.PubMedGoogle Scholar
  15. Lima DC, Duarte FT, Medeiros VK, Lima DB, Carvalho PC, Bonatto D, et al. The influence of iron on the proteomic profile of Chromobacterium violaceum. BMC Microbiol. 2014;14:267.PubMed CentralView ArticlePubMedGoogle Scholar
  16. Cordeiro IB, Castro DP, Nogueira PPO, Angelo PCS, Nogueira PA, Gonçalves JFC, et al. Electrophoresis and spectrometric analyses of adaptation-related proteins in thermally stressed Chromobacterium violaceum. Genet Mol Res. 2013;12(4):5057–71.View ArticlePubMedGoogle Scholar
  17. Beavis RC, Chaudhary T, Chait BT. Alpha-Cyano-4-Hydroxycinnamic Acid as a Matrix for Matrix-Assisted Laser Desorption Mass Spectrometry. Org Mass Spectrom. 1992;27(2):156–8.View ArticleGoogle Scholar
  18. Karas M, Hillenkamp F. Laser Desorption Ionization of proteins with molecular masses exceeding 10 000 daltons. Anal Chem. 1988;60:2299–301.View ArticlePubMedGoogle Scholar
  19. Habermann B, Oegema J, Sunyaev S, Shevchenko A. The power and the limitations of cross-species protein identification by mass spectrometry-driven sequence similarity searches. Mol Cell Proteomics. 2004;3(3):238–49.View ArticlePubMedGoogle Scholar
  20. Junqueira M, Spirin V, Balbuena TS, Thomas H, Adzhubei I, Sunyaev S, et al. Protein identification pipeline for the homology-driven proteomics. J Proteomics. 2008;71(3):346–56.PubMed CentralView ArticlePubMedGoogle Scholar
  21. Yates 3rd JR. Database searching using mass spectrometry data. Electrophoresis. 1998;19(6):893–900.View ArticlePubMedGoogle Scholar
  22. Al-Dahouk S, Jubier-Maurin V, Neubauer H, Köhler S. Quantitative analysis of the Brucella suis proteome reveals metabolic adaptation to long-term nutrient nutrient-starvation. BMC Microbiol. 2013;13:199.PubMed CentralView ArticlePubMedGoogle Scholar
  23. Choudhary JS, Blackstock WP, Creasy DM, Cottrell JS. Matching peptide mass spectra to EST and genomic DNA databases. Trends Biotechnol. 2001;19(10 Suppl):S17–22.View ArticlePubMedGoogle Scholar
  24. Kadouri D, Jurkevitch E, Okon Y. Involvement of the reserve material poly-beta-hydroxybutyrate in Azospirillum brasilense stress endurance and root colonization. Appl Environ Microbiol. 2003;69(6):3244–50.PubMed CentralView ArticlePubMedGoogle Scholar
  25. Hervas AB, Canosa I, Santero E. Transcriptome analysis of Pseudomonas putida in response to nitrogen availability. J Bacteriol. 2008;190(1):416–20.PubMed CentralView ArticlePubMedGoogle Scholar
  26. Ratcliff WC, Kadam SV, Denison RF. Poly-3-hydroxybutyrate (PHB) supports survival and reproduction in starving rhizobia. FEMS Microbiol Ecol. 2008;65(3):391–9.View ArticlePubMedGoogle Scholar
  27. Spence J, Cegielska A, Georgopoulos C. Role of Escherichia coli Heat Shock Proteins DnaK and HtpG (C62.5) in Response to Nutritional Deprivation. J Bacteriol. 1990;172(12):7157–66.PubMed CentralPubMedGoogle Scholar
  28. Kovacs D, Agoston B, Tompa P. Disordered plant LEA proteins as molecular chaperones. Plant Signal Behav. 2008;3(9):710–3.PubMed CentralView ArticlePubMedGoogle Scholar
  29. Fredriksson Å, Ballesteros M, Dukan S, Nystrom T. Defense against Protein Carbonylation by DnaK/DnaJ and Proteases of the Heat Shock Regulon. J Bacteriol. 2005;187(12):4207–13.PubMed CentralView ArticlePubMedGoogle Scholar
  30. Caldas TD, Yaagoubi AE, Richarme G. Chaperone Properties of Bacterial Elongation Factor EF-Tu. J Biol Chem. 1998;273(19):11478–82.View ArticlePubMedGoogle Scholar
  31. Gomes DF, Batista JS, Schiavon AL, Andrade DS, Hungria M. Proteomic profiling of Rhizobium tropici PRF 81: identification of conserved and specific responses to heat stress. BMC Microbiol. 2012;12:84.PubMed CentralView ArticlePubMedGoogle Scholar
  32. Bogumil D, Dagan T. Chaperonin-dependent accelerated substitution rates in prokaryotes. Genome Biol Evol. 2010;2:602–8.PubMed CentralView ArticlePubMedGoogle Scholar
  33. Nair S, Finkel SE. Dps protects cells against multiple stresses during stationary phase. J Bacteriol. 2004;186:4192–8.PubMed CentralView ArticlePubMedGoogle Scholar
  34. Zhao G, Ceci P, Ilari A, Giangiacomo L, Laue TM, Chiancone E, et al. Iron and hydrogen peroxide detoxification properties of DNA-binding protein from starved cells. A ferritin-like DNA-binding protein of Escherichia coli. J Biol Chem. 2002;277:27689–96.View ArticlePubMedGoogle Scholar
  35. Koskiniemi S, Lamoureux JG, Nikolakakis KC, t’Kint de Roodenbeke C, Kaplan MD, Low DA, et al. Rhs proteins from diverse bacteria mediate intercellular competition. Proc Natl Acad Sci U S A. 2013;110(17):7032–7.PubMed CentralView ArticlePubMedGoogle Scholar
  36. Poole SJ, Diner EJ, Aoki SK, Braaten BA, t’Kint de Roodenbeke C, Low DA, et al. Identification of functional toxin/immunity genes linked to contact-dependent growth inhibition (CDI) and rearrangement hotspot (Rhs) systems. PLoS Genet. 2011;7(8):e1002217.PubMed CentralView ArticlePubMedGoogle Scholar
  37. Aggarwal K, Lee KH. Overexpression of cloned RhsA sequences perturbs the cellular translational machinery in Escherichia coli. J Bacteriol. 2011;193(18):4869–80.PubMed CentralView ArticlePubMedGoogle Scholar
  38. Pedersen S, Bloch PL, Reeh S, Neidhardt FC. Patterns of protein synthesis in E. coli: a catalog of the amount of 140 individual proteins at different growth rates. Cell. 1978;14(1):179–90.View ArticlePubMedGoogle Scholar
  39. Thompson RC, Dix DB, Karim AM. The reaction of ribosomes with elongation factor Tu. GTP complexes. Aminoacyl-tRNA-independent reactions in the elongation cycle determine the accuracy of protein synthesis. J Biol Chem. 1986;261(11):4868–74.PubMedGoogle Scholar
  40. Wholey WY, Jakob U. Hsp33 confers bleach resistance by protecting elongation factor Tu against oxidative degradation in Vibrio cholerae. Mol Microbiol. 2012;83(5):981–91.PubMed CentralView ArticlePubMedGoogle Scholar
  41. Young CC, Bernlohr RW. Elongation factor Tu is methylated in response to nutrient deprivation in Escherichia coli. J Bacteriol. 1991;173(10):3096–100.PubMed CentralPubMedGoogle Scholar
  42. Hersch SJ, Wang M, Zou SB, Moon K, Foster LJ, Ibba M, et al. Divergent protein motifs direct elongation factor P-mediated translational regulation in Salmonella enterica and Escherichia coli. MBio. 2013;4(2):e00180–13.PubMed CentralView ArticlePubMedGoogle Scholar
  43. Navarre WW, Zou SB, Roy H, Xie JL, Savchenko A, Singer A, et al. PoxA, YjeK, and elongation factor P coordinately modulate virulence and drug resistance in Salmonella enterica. Mol Cell. 2010;39:209–21.PubMed CentralView ArticlePubMedGoogle Scholar
  44. Fujiwara S, Aki R, Yoshida M, Higashibata H, Imanaka T, Fukuda W. Expression Profiles and Physiological Roles of Two Types of Molecular Chaperonins from the Hyperthermophilic Archaeon Thermococcus kodakarensis. Appl Environ Microbiol. 2008;74(23):7306–12.PubMed CentralView ArticlePubMedGoogle Scholar
  45. De Angelis M, Di Cagno R, Huet C, Crecchio C, Fox PF, Gobbetti M. Heat Shock Response in Lactobacillus plantarum. Appl Environ Microbiol. 2004;70(3):1336–46.PubMed CentralView ArticlePubMedGoogle Scholar
  46. Semrad K, Green R, Schroeder R. RNA chaperone activity of large ribosomal subunit proteins from Escherichia coli. RNA. 2004;10(12):1855–60.PubMed CentralView ArticlePubMedGoogle Scholar
  47. Durán N, Antônio RV, Haun M, Pilli RA. Biosynthesis of a trypanocide by Chromobacterium violaceum. World J Microbiol Biotechnol. 1994;10:686–90.View ArticlePubMedGoogle Scholar
  48. Wang H, Oster G. Energy transduction in the F1 motor of ATP synthase. Nature. 1998;396(6708):279–82.View ArticlePubMedGoogle Scholar
  49. Derr P, Boder E, Goulian M. Changing the specificity of a bacterial chemoreceptor. J Mol Biol. 2006;355(5):923–32.View ArticlePubMedGoogle Scholar
  50. Meier VM, Scharf BE. Cellular localization of predicted transmembrane and soluble chemoreceptors in Sinorhizobium meliloti. J Bacteriol. 2009;191(18):5724–33.PubMed CentralView ArticlePubMedGoogle Scholar
  51. Ryan S, Begley M, Gahan CG, Hill C. Molecular characterization of the arginine deiminase system in Listeria monocytogenes: regulation and role in acid tolerance. Environ Microbiol. 2009;11(2):432–45.View ArticlePubMedGoogle Scholar
  52. Casiano-Colon A, Marquis RE. Role of the Arginine Deiminase System in Protecting Oral Bacteria and an Enzymatic Basis for Acid Tolerance. Appl Environ Microbiol. 1988;54(6):1318–24.PubMed CentralPubMedGoogle Scholar
  53. Lima-Bittencourt CI, Astolfi-Filho S, Souza EC, Santos FR, Nascimento AMA. Analysis of Chromobacterium sp. natural isolates from different Brazilian ecosystems. BMC Microbiol. 2007;7:58.PubMed CentralView ArticlePubMedGoogle Scholar
  54. Domenis R, Bisetto E, Rossi D, Comelli M, Mavelli I. Glucose-modulated mitochondria adaptation in tumor cells: a focus on ATP synthase and inhibitor Factor 1. Int J Mol Sci. 2012;13(2):1933–50.PubMed CentralView ArticlePubMedGoogle Scholar

Copyright

© Castro et al. 2015
