Transcriptome profiling of Bacillus subtilis OKB105 in response to rice seedlings

  • Shanshan Xie1,
  • Huijun Wu1,
  • Lina Chen1,
  • Haoyu Zang1,
  • Yongli Xie1 and
  • Xuewen Gao1Email author
Contributed equally
BMC Microbiology201515:21

https://doi.org/10.1186/s12866-015-0353-4

Received: 31 March 2014

Accepted: 19 January 2015

Published: 6 February 2015

Abstract

Background

Plant growth-promoting rhizobacteria (PGPR) are soil beneficial microorganisms that colonize plant roots for nutritional purposes and accordingly benefit plants by increasing plant growth or reducing disease. However, the mechanisms and pathways involved in the interactions between PGPR and plants remain unclear. In order to better understand these complex plant-PGPR interactions, changes in the transcriptome of the typical PGPR Bacillus subtilis in response to rice seedlings were analyzed.

Results

Microarray technology was used to study the global transcriptionl response of B. subtilis OKB105 to rice seedlings after an interaction period of 2 h. A total of 176 genes representing 3.8% of the B. subtilis strain OKB105 transcriptome showed significantly altered expression levels in response to rice seedlings. Among these, 52 were upregulated, the majority of which are involved in metabolism and transport of nutrients, and stress responses, including araA, ywkA, yfls, mtlA, ydgG et al. The 124 genes that were downregulated included cheV, fliL, spmA and tua, and these are involved in chemotaxis, motility, sporulation and teichuronic acid biosynthesis, respectively.

Conclusions

We present a transcriptome analysis of the bacteria Bacillus subtilis OKB105 in response to rice seedings. Many of the 176 differentially expressed genes are likely to be involved in the interaction between Gram-positive bacteria and plants.

Keywords

Bacillus subtilis Oryza sativa Plant-microbe interactions Transcriptomics Microarray Functional annotation

Background

Plant growth-promoting rhizobacteria (PGPR) are soil microorganisms that colonize plant roots, obtaining nutritional benefits from the plant in exchange for stimulating plant growth and reducing plant disease. These benefical plant-microbe interactions are complex. Plants release chemicals such as malic acid that attract rhizobacteria, causing migration of microorganisms towards and along the roots [1-4]. After colonization, rhizobacteria consume carbohydrates and amino acids released by the plant. Simultaneously, PGPR produce substances affecting plant growth and development such as the plant hormones indole-3-acetic acid [5], cytokinins [6], and gibberellins [7]. PGPR also produce volatiles that promote plant growth [8], and they protect plants against soil-borne diseases by predation and parasitism of plant-hostile organisms, outcompeting plant pathogens for niches or specific substances such as nutrients or ferric iron. Furthermore, PGPR also produce antibiotics that work against plant pathogens, and can induce plant resistance directly [9,10]. Despite advances, it remains unclear exactly which mechanisms or pathways are involved in the interactions between PGPR and plants.

Recently, transcription microarray technology and comparative proteomic analysis have been applied to improve our understanding of plant-microbe interactions. To date, the focus has largely been on plant responses to benefical bacteria. A study in Arabidopsis showed that some putative auxin-regulated genes and nodulin-like genes were up-regulated, and some ethylene-responsive genes were down-regulated, following exposure to Pseudomonas fluorescens FPT9601-T5 [11]. In another study, rice proteins involved in plant growth and defence were induced after exposure to Bacillus cereus NMSL88 [12]. Proteins reported to be directly or indirectly involved in growth promotion were differentially expressed in rice following inoculation with P. fluorescens KH-1 [13]. Relatively fewer studies have focused on the transcriptional changes that occur in benefical bacteria when interacting with plants. A number of P. aeruginosa genes involved in metabolism, chemotaxis, and type III secretion were upregulated in response to sugar beet exudates [14]. Amino acids and aromatic compounds in root exudates were shown to induce P. putida to colonize the rhizosphere [15]. In another study, several groups of genes from B. amyloliquefaciens FZB42 were strongly induced by maize root exudates, most of which were involved in nutrient utilization, bacterial chemotaxis and motility, and non-ribosomal synthesis of antimicrobial peptides and polyketides [16]. These and other studies all investigated the effects of root exudates on PGPR, but studies on the effects of living plants on PGPR are needed if we are to understand the complex nature of plant-PGPR interactions.

B. subtilis OKB105 is a derivative of B. subtilis 168 that contains an sfp gene that encodes a phosphopantetheinyl transferase involved in surfactin production and that renders this strain with the ability to produce high levels of surfactin [17]. B. subtilis OKB105 has shown great potential as a growth-promoting and biocontrol agent. The microbe significantly enhanced plant height and fresh weight, lowered the severity of disease caused by tobacco mosaic virus, and exhibited nematicidal activity against Aphelenchoides besseyi, Ditylenchus destructor, Bursaphelenchus xylophilus and Meloidogyne javanica [18,19]. The mechanism by which OKB105 promotes plant growth and reduces disease are not fully understood. To address this question, we performed transcriptomics experiments to identify B. subtilis OKB105 genes that are differentially expressed in response to rice seedlings, and investigated their roles in plant-microbe interactions. To our knowledge, this is the first report on the transcriptomic responses of Bacillus spp. upon interaction with living plants.

Results

Effects of B. subtilis on rice growth

The effects of B. subtilis OKB105 on rice growth was evaluated in this study. After surface sterilization, rice seeds were soaked in B. subtilis OKB105 cell suspensions, dried and incubated at 28°C. Shoot and root lengths of rice seedlings were measured after 10 days, and bacteria increased the shoot length by 25.2%, whereas discrepant analysis of root length showed no difference (Figure 1).
Figure 1

Effect of Bacillus subtilis OKB105 on rice (cultivar 9311) growth. Rice seeds (cultivar 9311) were soaked in B. subtilis OKB105 suspensions at cell densities of 106 cfu ml-1 for 2 h, blotted dry and then placed in wet blotters and incubated in a growth chamber. The shoot and root lengths of rice seedlings were measured after 10 days.

Selection of appropriate interaction time

Plant-microbe interactions are a complex phenomenon and involve recognition, movement, colonization and production of metabolites from both organisms that influence the other. During the initiation phase of the interaction, plants release signals that attract bacteria via a chemotactic response [20], and that are consumed by the bacteria as an energy source. Plant root exudates affect many aspects of bacterial biochemistry and physiology including cell density, the types of bacteria present in the community, and migration towards and colonization of plant roots [21,22]. However, bacteria not in physical contact with rice seedlings can also have a great influence on plants. For example, volatiles produced by Bacillus subtilis promote growth and induce systemic resistance in Arabidopsis [8]. Communication without physical contact is therefore a type of interaction, and whole cell suspensions were collected and tested using realtime PCR analysis for this reason. In order to identify the onset of this early phase, expression levels of genes involved in biofilm formation and nutrient degradation were measured at different timepoints during the incubations. The chosen genes were as follows: galE encoding UDP-glucose-4-epimerase, ywkA encoding malate dehydrogenase, and araA encoding L-arabinose isomerase that are all involved in carbohydrate degradation; tasA encoding a major biofilm matrix component, srfAA encoding surfactin synthetase, and sinI encoding an antagonist of SinR that are all involved in biofilm formation. The results showed that the expression of srfAA and sinI were significantly altered after interacting with rice for only 15 min, part of cells may colonized on rice seedlings and biofilm involvement in response to rice seedlings. In contrast, genes involved in carbohydrate degradation did not undergo significant changes in expression until 2 h, indicating that most of the bacterial population had been exposed to the root exudates by this point (Figure 2). These results suggest that bacteria quickly become established in roots and begin utilizing plant carbohydrates after 2 h, therefore 2 h was chosen as an appropriate interaction time.

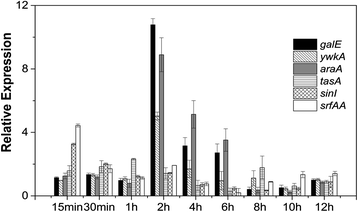

Figure 2

Real-time PCR analysis of genes involved in biofilm formation and degradation of nutrients. B. subtilis OKB105 cells were harvested at different times during interaction with rice seedlings (15 min, 30 min, 1 h, 2 h, 4 h, 6 h, 8 h, 10 h and 12 h) for extracting total RNA. The gene galE encoding UDP-glucose-4-epimerase, ywkA encoding malate dehydrogenase and araA encoding L-arabinose isomerase were identified, and are known to be involved in nutrient degradation. TasA encoding major a biofilm matrix component, srfAA encoding surfactin synthetase, and sinI encoding antagonist of SinR were also identified, and are involved in biofilm formation.

Microarray analysis of B. subtilis OKB105 gene expression in response to rice

To investigate the molecular mechanisms involved in plant-microbe interactions, three independent experiments were carried out. To evaluate sample consistency, microarray data were analysed using cluster 3.0 software, and hierarchical analysis showed clearly defined groups for the three replicated experimental rice seedling samples and the three replicated control samples (Figure 3), indicating consistency.
Figure 3

Cluster analysis of microarray data. CK, B. subtilis OKB105 without contact with rice seedlings; T, B. subtilis OKB105 after interaction with rice seedlings. The cluster analysis was performed using Cluster 3.0 software. Red and green indicate higher (>2.0) and lower (<0.5) ratios, respectively. Each treatment was repeated three times.

Differentially expressed genes were identified by the following selection criteria: (1) changes in gene expression occurred in the same direction in all three microarray analyses, (2) the average change in expression level was greater than 2-fold for up- and downregulated genes, (3) the q value was less than 0.05. When this criterion was applied, a total of 176 genes representing 3.8% of the transcriptome were significantly altered in response to rice seedlings. Among these differentially expressed genes, 52 were upregulated and 124 were downregulated (Table 1). In addition, a significant proportion (~30%) of the differentially expressed genes encoded proteins with putative functions or were described as ‘hypothetical proteins’ in the databases. The majority of the differentially expressed genes belonged to the following functional categories: Transport/binding proteins and lipoproteins (15.38% of upregulated genes, 8.87% of downregulated genes); RNA synthesis (13.46% of upregulated genes, 4.84% of downregulated genes); Metabolism of carbohydrates and related molecules (11.54% of upregulated genes, 9.68% of downregulated genes); Metabolism of amino acids and related molecules (9.62% of upregulated genes, 9.68% of downregulated genes); sporulation (8.06% of downregulated genes); Mobility and chemotaxis (6.45% of downregulated genes) (Figure 4). The majority were related to transport and metabolism, and this may be due to the importance of material and energy exchange between plant and Bacillus. Genes related to sporulation were downregulated. This may be because without nutrition provided by plant root exudates, nutrient deprivation and general stress triggers differentiation into dormant spores. In addition, it is viable cells rather than dormant spores that interact with rice seedlings.
Table 1

Bacillus subtilis OKB105 genes differentially expressed in response to rice seedlings

Gene

Annotation

Fold-change ratio

q-value (%)

Up-regulated genes



Cell wall (3.85%)



yngB

UTP-glucose-1-phosphate uridylytransferase

2.631

0

dacA

Penicillin-binding protein 5

2.2647

0

Transport/binding and lipoproteins (15.38%)



ydgH

Putative drug exporter of the RND superfamily

16.1482

0

mtlA

PTS mannitol-specific enzyme II CB component

5.7777

0

yhcA

Multidrug resistance protein

5.2704

0

ykoY

Transporter

3.8449

0

yxkD

Efflux transporter

2.7977

0

yflA

Amino acid carrier protein

2.1064

0

ydfM

Cation efflux system

2.083

0

yflS

2-Oxoglutarate/malate translocator

2.0806

0

Sensors (signal transduction) (3.85%)



yclJ

Two-component response regulator YclK

2.4004

0

yclK

Two-component sensor histidine kinase

2.3307

0

Sporulation (1.92%)



rapF

Response regulator aspartate phosphatase

2.408

0

Metabolism of carbohydrates and related molecules (11.54%)



mtlD

Mannitol-1-phosphate dehydrogenase

5.5707

0

ywkA

Malate dehydrogenase

4.12

0

araA

L-arabinose isomerase

2.7149

0

galE

UDP-glucose 4-epimerase

2.6384

0

yngB

UTP-glucose-1-phosphate uridylytransfarase

2.631

0

mmgD

Citrate synthase III

2.0082



Metabolism of amino acids and related molecules (9.62%)



proB

Glutamate-5-kinase

2.5409

0

ald

L-alanine dehydrogenase

2.3522

0

speA

Arginine decarboxylase

2.2631

0

yrpC

Glutamate racemase

2.0801

0

hutH

histidase

2.0154

0

Metabolism of lipids (1.92%)



yngG

Hydroxymethylglutary-COA lyase

2.2458

0

RNA regulation (13.46%)



ydgG

MarR family transcriptional regulator

13.515

0

yhbI

Transcriptional regulator (MarR family)

7.9016

0

yhgD

Transcriptional regulator (TerR/AcrR family)

7.5195



yhcB

Trp repressor binding protein

2.5366

0

fruR

Transcriptional repressor of the fructose operon

2.4164

0

yugG

Lrp/Asnc family transcriptional regulator

2.2458

0

yusO

MarR family transcriptional regulator

2.1994

0

Protein synthesis (1.92%)



pheS

Phenylalanyl-tRNA synthetase

2.0356

0

Protein modification (1.92%)



yxaL

Serine/threonine protein kinase

2.3234

0

Adaptation to atypical conditions (1.92%)



rsbX

Serine phosphatase

2.1821

0

Detoxification (1.92%)



ykoY

Toxic anion resistance protein

3.4438

0

Phage-related functions (1.92%)



yhgE

Phage infection protein

5.0703

0

Unknown (28.85%)



ydfK

Putative integral inner membrane protein

3.8449

0

yvpB

Putative hydrolase

3.5212

0

yneF

Hypothetical protein

3.0863

0

yrkO

Putative integral inner membrane protein

2.6702

0

yngA

Putative conserved membrane protein

2.4775

0

yhaJ

Putative bacteriocin

2.4261

0

yfkA

Putative Fe-S oxidoreductase

2.4164

0

yfhE

Hypothetical protein

2.3804

0

ykcB

Putative integral inner membrane protein

2.2993

0

ywkB

Putative transporter

2.2629

0

yaaT

Hypothetical protein

2.2497

0

ykaA

Putative Pit accessory protein

2.0901

0

ydhB

Putative integral inner membrane protein

2.0405

0

ykyB

Hypothetical protein

2.0219

0

Down-regulated



Cell wall (8.06%)



tuaD

Biosynthesis of teichuronic acid

0.4536

0

tuaA

Biosynthesis of teichuronic acid

0.4382

0

lytD

N-Acetylglucosaminidase

0.4371

0

tuaC

Biosynthesis of teichuronic acid

0.435



tuaF

Biosynthesis of teichuronic acid

0.3949

0

tuaG

Biosynthesis of teichuronic acid

0.3922

0

tuaB

Biosynthesis of teichuronic acid

0.3855

0

pbpE

Penicillin-binding protein 4

0.3219

0

tuaH

Biosynthesis of teichuronic acid

0.319

0

tuaE

Biosynthesis of teichuronic acid

0.2841

0

Transport/binding proteins and lipoproteins (8.87%)



opuD

Glycine betaine transporter

0.491

0

gabP

γ-Aminobutyrate permease

0.4897

0

ydhF

Lipoproteins

0.4892

0

iolF

Inositol transport protein

0.4687

0

yxlG

ABC transporter permease

0.4536

0

yxlF

ABC transporter

0.3579

0

glpF

Glycerol uptake facilitor

0.3393

0

yteP

Transmembrane lipoprotein

0.3054

0

ytcQ

Lipoprotein

0.221

0

ytcP

ABC transporter

0.2021

0

yybF

Antibotic resistance protein

0.1847

0

Mobility and chemotaixs (6.45%)



fliL

Flagellar protein required for flagellar formation



yvyG

Flagellar protein

0.4886

0

flgK

Flagellar hook-associated protein 1 (HAP1)

0.4395

0

hag

Flagellin protein

0.3963

0

fliK

Flagellar hook-length control

0.3692

0

flgL

Flagellar hook-associated protein # (HAP3)

0.361

0

cheV

Modulation of cheA activity in response to attractants

0.3404

0

fliJ

Flagellar protein required for formation of basal body

0.2175

0

Sporulation (8.06%)



spmA

Spore maturation protein

0.4981

0

phrC

Phosphatase regulator

0.4976

0

cgeD

Matyration of the outermost layer of the spore

0.4922

0

usd

Required for translation of spoIII D

0.4893

0

rapG

Response regulator aspartate phosphatase

0.4844

0

tlp

Small acid-soluble spore protein

0.4354

0

phrE

Phosphatase regulator

0.4216

0

phrG

Response regulator aspartate phosphatase

0.3595

0

ywcE

Protein required for proper spore morphogenesis and germination

0.1561

0

csfB

Forespore-specific protein

0.2353

0

Metabolism of carbohydrates and related molecules (9.68%)



abnA

Arabinan-endo-1,5-α-L-arabinase

0.4833

0

pdhB

Pyruvate dehydrogenase

0.4766

0

bglH

β-Glucosidase

0.4239

0

iolH

Myo-inositol catabolism

0.4076

0

iolG

Myo-inositol catabolism

0.3885

0

glpK

Glycerol kinase

0.3478

0

yteT

Rhamnogalacturonyl dehydrogenase

0.299

0

iolE

Myo-inositol catabolism

0.2972

0

iolD

Myo-inositol catabolism

0.2712

0

iolB

Myo-inositol catabolism

0.2634

0

iolC

Myo-inositol catabolism

0.2609

0

yteR

Unsaturated rhamnogalacturonyl hydrolase

0.2221

0

Metabolism of amino acids and related molecules (9.68%)



argG

Argininosuccinate synthase

0.49

0

leuA

2-Isopropylmalate synthase

0.4795

0

yuxL

Acylaminoacyl-peptidase

0.4718

0

vpr

Minor extracellular serine protease

0.4661

0

leuD

3-Isopropylmalate dehydratase

0.462

0

ymfH

Processing protease

0.4612

0

leuB

3-Inospropylmalate dehydratase

0.4476

0

epr

Minor extracellular serine protease

0.429

0

argC

N-Acetylornithine aminotransferase

0.394

0

racX

Amino acid racemase

0.3608

0

ilvC

Ketol-acid dehydratase

0.3524

0

yaaO

Lysine decarboxylase

0.2553

0

Metabolism of nucleotides and nucleic acids (4.03%)



purF

Glutamine phosphoribosylpyrophosphate aminotransferase

0.4532

0

purM

Phosphoribosylglycinamidezole synthetase

0.4313

0

purD

Phosphoribosylglycinamide synthetase

0.4158

0

purH

Phosphoribosylglycinamide carboxy formyl formyltransferase

0.4008

0

purN

Phosphoribosylglycinamide formyltransferase

0.3243

0

Metabolism of lipids (2.42%)



yusK

Acetyl-CoA C-acyltransferase

0.4973

0

glpQ

Glycerophosphoryl diester phosphodiesterase

0.4721

0

yvaG

3-Oxoacyl-acyl-carrier protein reductase

0.4424

0

Metabolism of coenzymes and prosthetic groups (0.81%)



folC

Folyl-polyglutamate synthetase

0.3952

0

RNA synthesis (4.84%)



spo0A

Two-component response regulator central for the initiation of sporulation

0.4924

0

sigA

RNA polymerase major sigma factor

0.4332

0

abh

Transcriptional regulator of transition state genes

0.4266

0

yozG

Transcriptional regulator

0.3154

0

sigY

RNA polymerase ECF-type sigma factor

0.2552

0

ykoM

Transcriptional regulator

0.2517

0

Protein synthesis (2.42%)



yxlE

Negative regulator of sigma-Y antivity

0.2727

0

yxlD

Sigma-Y antisigma factor component

0.2629

0

yxlC

Sigma-Y antisigma factor

0.2276

0

Aminoacyl-tRNA synthetases (1.61%)



ileS

Isoleucyl-tRNA synthetase

0.4435

0

valS

Valy-tRNA synthetase

0.3497

0

Detoxification (1.61%)



ybfO

Erythromycin esterase

0.4784

0

yndN

Fosfomycin resistance protein

0.4711

0

Unknown (31.45%)



yisT

Hypothetical protein

0.4827

0

yukJ

Hypothetical protein

0.4766

0

ysdB

Hypothetical protein

0.474

0

ylxF

Putative kinesin-like protein

0.473

0

yrzF

Putative serine/threonine-protein kinase

0.4723

0

ywqH

Hypothetical protein

0.4715

0

ykpC

Hypothetical protein

0.4711

0

ypiB

Hypothetical protein

0.4647

0

yitR

Hypothetical protein

0.4627

0

yvfG

Hypothetical protein

0.4602

0

yhfM

Hypothetical protein

0.4522

0

yvaG

Putative oxidoreductase

0.4424

0

yqhO

Hypothetical protein

0.4406

0

ytzD

Hypothetical protein

0.4349

0

ywnF

Hypothetical protein

0.4316

0

yfmB

Hypothetical protein

0.4297

0

ypiF

Hypothetical protein

0.4239

0

yqhL

Hypothetical protein

0.4205

0

yjfB

Hypothetical protein

0.4165

0

yocB

Hypothetical protein

0.4042

0

yyaB

Putative integral inner membrane protein

0.4036

0

ytbQ

Putative nucleoside-diphosphate-sugar epimerase

0.3851

0

ybgB

Hypothetical protein

0.3787

0

yxbC

Hypothetical protein

0.3598

0

yrzL

Hypothetical protein

0.3565

0

yuiB

Hypothetical protein

0.3557

0

ykrP

Putative integral inner membrane protein

0.3394

0

yhzC

Hypothetical protein

0.3291

0

yyaO

Hypothetical protein

0.2553

0

yxbB

Putative S-adenosylmethionine-dependent methyltransferase

0.2325

0

yuiA

Hypothetical protein

0.2091

0

yxnB

Hypothetical protein

0.1604

0

Figure 4

Functional categories of B. subtilis OKB105 genes exhibiting altered transcription after interaction with rice seedlings. 122 genes were of known function and classified accordingly, while 54 were of unknown function.

Validation of microarray results by real-time PCR

Seven up-regulated and two down-regulated genes were chosen for evaluation by real-time PCR. All nine genes were confirmed as being differentially expressed in response to rice seedlings (Figure 5), which confirmed the reliability of the microarray data.
Figure 5

Real-time PCR validation of differentially expressed genes. Expression levels of randomly selected genes were measured using a 7500 Fast real-time PCR System. Statistically significant differences were determined using Fisher’s test (P ≤0.05).

Differentially expressed genes with known function

Among the 176 differentially expressed genes, 122 had known functions such as involvement in aspects of metabolism, transport, mobility, and chemotaxis. Of these, four groups of genes were particularly strongly affected by rice seedlings (Figure 6).
Figure 6

A subset of B. subtilis OKB105 genes exhibiting altered expression in response to rice seedlings. I, genes involved in metabolism or transport of carbohydrates and amino acids; II, genes associated with RNA synthesis including transcriptional regulators associated with stress responses; III, genes involved in chemotaxis, motility and sporulation; IV, genes associated with teichuronic acid biosynthesis. Cluster analysis was performed using cluster 3.0 software. Red and green indicate higher (>2.0) and lower (<0.5) ratios, respectively. Each treatment was repeated three times.

(1) 43 genes involved in metabolism or transport of carbohydrates or amino acids were significantly altered in response to rice seedlings. Of these, galE and yngB (galactose metabolism), araA (arabinose utilization) and mtlD (mannose metabolism) were upregulated in response to rice seedlings. Genes proB, ald, hutH, involved in proline, alanine, and histidine metabolism respectively, were also upregulated, while genes involved in leucine (leuA, leuB, leuD) and arginine (argC, argG) biosynthesis were downregulated. Genes encoding proteins involved in carbohydrate and amino acid transport such as yfls, yflA, and mtlA were also stimulated. This finding is perhaps not surprising because malate, glucose, arabinose, mannose, glucuronic acid, histidine, proline, leucine, alanine and arginine are all present in rice root exudates cultured in hydroponic conditions [23,24]. In this study, ywkA involved in malate metabolism, was upregulated. Malate has been reported to specifically attract B. subtilis in an isomer- and dose-dependent manner [22], suggesting that root exudates serve as energy sources and attractants in the interaction between roots and rhizobacteria. On the other hand, B. subtilis OKB105 cells not exposed to rice seedlings may be induced to sporulate due to a lack of energy that would otherwise be provided by the rice seedlings. Correspondingly, bacterial metabolism may remain low, and genes involved in the metabolism of carbohydrates or amino acids may be upregulated in response to rice seedlings.

Genes in the B. subtilis inositol operon (iolB, iolC, iolD, iolE, iolF, iolG, iolH), involved in myo-inositol catabolism, were downregulated. Previous reports suggested glucose is the main sugar found in rice root exudates, and DNA microarray results indicated that the iol operon was repressed by glucose through catabolite repression [23,25]. In summary, the presence of glucose inhibited the expression of genes involved in inositol metabolism.

(2) 13 genes associated with RNA synthesis including stress response transcriptional regulators were significantly upregulated. Among these, ydgG and yhbI showed the biggest changes (ydgG, 13.515-fold; yhbI, 7.9016-fold). These genes belong to the MarR transcriptional regulator family that has been reported to regulate expression of proteins conferring resistance to multiple antibiotics, organic components, detergents, and oxidative stress agents [26-28]. During growth, rice may produce compounds such as momilactone B and 5-resorcinol which are harmful to rhizobacteria [29,30]. Upregulation of stress-associated transcriptional regulators may assist rhizobacteria to adapt to environmental changes and confer a competitive advantage in the rhizosphere.

(3) The third group of genes associated with chemotaxis, motility and sporulation were downregulated. Amino acids and sugars in root exudates act as attractants that cause microorganisms to move towards roots [31]. We might expect chemotaxis and motility-associated genes such as cheV, fliL, and flgK to be upregulated, but these were downregulated in this study. This may be due to the different detection times employed. Upon initiation of the interaction process, bacteria recognize plant signals and move towards plant roots. Bacterial motility in the rhizosphere involves several processes such as chemotaxis, flagella-driven motility, swarming, and production of surfactants [32-35]. Expression of srfAA and sinI were significantly altered after interacting with rice for only 15 min (Figure 2), indicating that the bacteria may well have finished migrating towards the roots by 2 h. In order to conserve energy, expression of genes associated with chemotaxis and motility could remain at a low level. In addition, the rapid surface motility of bacteria may be independent of flagella [36], which may also explain the downregulation of these genes.

Sporulation in B. subtilis can be induced by starvation of carbon, nitrogen and phosphorus. In this study, five genes (spmA, phrC, cgeD, usd, rapG) involved in sporulation were downregulated after interaction with rice. This may be explained by root exudates supplying the energy required for the dynamic B. subtilis cells. Alternatively, B. subtilis can lie dormant as if energy is in short supply or when encountering a hostile environment. During plant-microbe interactions both plants and PGPR receive mutual benefits, and it is viable microbial cells rather than dormant spores that interact with rice seedlings. This may explain why genes related to sporulation were down-regulated during the detection time in this study.

(4) The fourth group of genes exhibiting altered expression levels upon interaction with rice seedlings were associated with teichuronic acid biosynthesis. Anionic polymers make up 35-60% of the entire dry weight of the vegetative cell wall in B. subtilis, of which teichoic and teichuronic acids are the main types. When phosphate is sufficient, teichoic acids are present, whereas teichuronic acids predominate under phosphate-limiting conditions [37-39]. In this study, the tua operon (tuaA, tuaB, tuaC, tuaD, tuaE, tuaF, tuaG, tuaH) involved in teichuronic acid biosynthesis was repressed in response to rice seedlings, indicating that phosphate was sufficient and non-limiting in the rice-B. subtilis OKB105 interaction.

Discussion

In the present study, a global analysis of transcription in B. subtilis OKB105 in response to rice seedlings was performed using microarray experiments. A total of 43 genes associated with metabolism or transport of carbohydrates and amino acids exhibited differential expression. Genes involved in metabolism or transport of carbohydrates and amino acids were upregulated, while genes associated with amino acid biosynthesis were downregulated. Genes involved in inositol metabolism (iolB, iolC, iolD, iolE, iolG, iolH) were also downregulated due to suppression by glucose [40]. Nearly a quarter of the genes exhibiting altered expression were involved in transport or utilization of nutrients, suggesting rhizobacteria use carbohydrates and amino acids released by plants as energy sources.

Transcriptional regulators associated with stress responses were also affected. Rice seedlings not only produce nutrients but also release harmful compounds such as momilactone B and 5-resorcinol [29,30]. In response to these harmful substances, several genes belonging to the MarR family of transcriptional regulators were upregulated. MarR family proteins have been reported to regulate the expression of proteins conferring resistance to multiple antibiotics, organic components, detergents, and oxidative stress agents [26-28]. This observation may reflect the adaptability of B. subtilis, which is important among the highly competitive microbial communities vying to reside in the rhizosphere.

Many Bacillus species have been reported to stimulate plant growth under different conditions [41,42]. The beneficial effects conferred by Bacillus species on plants may operate directly via enhanced provision of nutrients, phytohormones or volatiles, or indirectly through production of antibiotics and induction of plant resistance mechanisms (ISR) [8]. In the present study, B. subtilis OKB105 suspension increased shoot length by 25.2%, while genes related to plant growth were not up or downregulated. This phenomenon may be explained by at least three reasons: (1) plant-microbe interactions are highly complex. Within the time frame of the experiments conducted, B. subtilis began to utilize nutrients released by the plant and started to adapt to the changing environment, but the time for production of plant growth promoting substances may have been insufficient, (2) not all bacterial cells in contact with plants necessarily establish a productive interaction, therefore the effects may be diluted below detection levels as the cell populations are averaged, (3) the functions of some differentially expressed genes remain unknown, and this increases the difficulty of studying plant-microbe interactions. Determination of the molecular mechanisms involved in plant-rhizobacteria interactions requires much further study.

Conclusion

Global analysis of transcription in B. subtilis OKB105 in response to rice seedlings was performed using microarray experiments. A total of 176 genes representing 3.8% of the B. subtilis strain OKB105 transcriptome showed significantly altered expression levels in response to rice seedlings. Differentially expressed genes were mainly involved in metabolism and transport of nutrients, stress responses, chemotaxis, motility, sporulation and teichuronic acid biosynthesis. The results had indicated that B. subtilis OKB105 could utilize carbohydrates and amino acids released by rice as energy sources, and then OKB105 migrates towards and establishes a relationship with rice. During the interaction process, OKB105 may enhance self-adaptability and cell viability in rhizosphere by inducing the expression of some transcriptional regulators and repressing sporulation-related genes expression, respectively. However, potential genes related to plant growth were not detected. More studies are needed to illustrate the nature of the complex plant-microbe interactions.

Methods

Preparation of B. subtilis OKB105 suspension

B. subtilis OKB105 was grown in LB at 37°C for 12 h. Cells were harvested by centrifugation at 8000 rpm for 15 min at 4°C, resuspended in distilled water and adjusted to a final concentration of 106 cfu ml-1.

Effects of B. subtilis on rice growth

The growth-promoting activity of B. subtilis OKB105 on rice was tested according to the standard roll towel method [14]. Rice seeds (cultivar 9311) were surface sterilized with 70% (v/v) ethanol for 1 min, disinfected with 5% (w/v) sodium hypochlorite for 15 min, and washed three times with sterile distilled water. After surface sterilization, rice seeds were soaked in bacterial suspensions for 2 h, blotted dry, placed in wet blotters and incubated in a growth chamber at 28°C for 10 days. Seeds soaked in sterile water were used as the control. The shoot and root lengths of rice seedlings were measured after 10 days. Each treatment included 30 seedlings and was repeated five times, and all experiments were repeated three times.

B. subtilis-rice interactions

Surface-sterilized rice seeds were germinated in Petri dishes at 28°C for 3 days. Germinated seeds were transplanted into 10 individual sterile vessels, and each vessel containing 30 rice seedings was incubated at 28°C. After 7 days of growth, 50 ml 106 cfu/ml B. subtilis OKB105 suspension was added. To determine the most suitable interaction time for subsequent transcription microarray analysis, rice seedlings were removed at 15 min, 30 min, and 1, 2, 4, 6, 8, 10 and 12 h. OKB105 cells not in physical contact with rice seedlings and cells washed from roots were collected by centrifugation at 4000 rpm for 30 min at 4°C and used for RNA extraction. B. subtilis OKB105 suspensions not interacting with rice were used as a control. Expression of genes involved in biofilm formation and nutrient degradation was detected using real-time PCR. The experiment was repeated three times.

Total RNA extraction and microarray analysis

50 ml 106 cfu/ml B. subtilis OKB105 suspensions incubated with 30 rice seedlings for 2 h were harvested for microarray analysis, and OKB105 cells not interacting with rice were used as a control. Total RNA was extracted using the Bacterial RNA Kit (Omega Bio-Tek, Norcross, GA, USA) according to the manufacturer’s instructions. Random priming cDNA synthesis, cDNA fragmentation and terminal labeling with biotinylated GeneChip DNA labeling reagent, and hybridization to the Affymetrix Bacillus subtilis Genome Array GeneChip were carried out by CapitalBio (CapitalBio Corporation, Beijing, China). The Bacillus subtilis genome array was custom designed by Affymetrix (Santa Clara, Calif.) using the published DNA sequence (GenBank accession no. NC_000964) [43]. The array contained probe sets to interrogate approximately 4,350 ORFs and 600 intergenic regions with an additional 45 control probe sets, and detects the antisense strand of the B. subtilis transcript. This design was completed as a custom design for Genencor International, Inc. in June 1998 and made available broadly in 2002. EST data used in the experimental design was from the Bacillus subtilis Genome Sequencing Project of the Institut Pasteur 10.1, December 1997. Each treatment was repeated three times.

Microarray data were collected and analyzed using the Affymetrix GeneChip Command Console software. And then further analyzed using hierarchical clustering with average linkage. Finally, tree visualization was performed with Java Treeview (Stanford University School of Medicine, Stanford, CA, USA). Transcripts were designated as significantly differentially expressed when they exhibited at least a 2-fold change in expression level and a q value of less than 0.05.

Real-time PCR

First-strand cDNA was synthesized using reverse transcriptase (TaKaRa Bio Inc, Dalian, China) with random hexamer primers. Real-time PCR was performed using SYBR Premix Ex Taq polymerase (TaKaRa Bio Inc, Dalian, China) with an ABI 7500 Fast Real-time PCR System (Applied Biosystems, Foster City, CA, USA). 16S rRNA was used to normalize RNA levels. Expression levels of galE, yywkA, araA, sinI, tasA and srfAA were measured at different timepoints during the plant-microbe interactions. Microarray results were validated by measuring the expression levels of some randomly chosen differentially expressed genes.

Microarray data accesion number

Microarray data have been deposited in the GEO database (http://www.ncbi.nlm.nih.gov/geo/) under accssion number GSE62421.

Data analysis

Statistical analysis was carried out by Fisher’s least-significant difference test (P ≤ 0.05) using SPSS software.

Notes

Declarations

Acknowledgements

This work was supported by grants from the National Natural Science Foundation of China (31100056, 31471811), the Special Fund for the Fundamental Research Funds for the Central Universities (KYZ201404), the Agro-scientific Research in the Public Interest (20130315), and the National High-tech R&D Program of China (2012AA101504).

Authors’ Affiliations

(1)
Department of Plant Pathology, College of Plant Protection, Nanjing Agricultural University, Key Laboratory of Integrated Management of Crop Diseases and Pests, Ministry of Education

References

  1. Chao W-L, Li R-K, Chang W-T. Effect of root agglutinin on microbial activities in the rhizosphere. Appl Environ Microbiol. 1988;54(7):1838–41.PubMed CentralPubMedGoogle Scholar
  2. De Weger LA, Van der Vlugt C, Wijfjes A, Bakker P, Schippers B, Lugtenberg B. Flagella of a plant-growth-stimulating Pseudomonas fluorescens strain are required for colonization of potato roots. J Bacteriol. 1987;169(6):2769–73.PubMed CentralPubMedGoogle Scholar
  3. Schippers B, Bakker AW, Bakker PAH. Interactions of deleterious and beneficial rhizosphere microorganisms and the effect of cropping practices. Annu Rev Phytopathol. 1987;25(1):339–58.View ArticleGoogle Scholar
  4. Vesper SJ, Malik NS, Bauer WD. Transposon mutants of Bradyrhizobium japonicum altered in attachment to host roots. Appl Environ Microbiol. 1987;53(8):1959–61.PubMed CentralPubMedGoogle Scholar
  5. Schroth LJ. Influence of bacteria sources of indol-3-acetic acid on root elongation of sugar beet. Phytopathology. 1986;76:386–9.View ArticleGoogle Scholar
  6. Timmusk S, Nicander B, Granhall U, Tillberg E. Cytokinin production by Paenibacillus polymyxa. Soil Biol Biochem. 1999;31(13):1847–52.View ArticleGoogle Scholar
  7. Ramos‐Solano B, Probanza A, Mehouachi JR, Tadeo F, Talon M. The plant‐growth‐promoting rhizobacteria Bacillus pumilus and Bacillus licheniformis produce high amounts of physiologically active gibberellins. Physiologia Plantarum. 2001;111(2):206–11.View ArticleGoogle Scholar
  8. Lugtenberg B, Kamilova F. Plant-growth-promoting rhizobacteria. Annu Rev Microbiol. 2009;63:541–56.View ArticlePubMedGoogle Scholar
  9. Pliego C, De Weert S, Lamers G, De Vicente A, Bloemberg G, Cazorla FM, et al. Two similar enhanced root‐colonizing Pseudomonas strains differ largely in their colonization strategies of avocado roots and Rosellinia necatrix hyphae. Environ Microbiol. 2008;10(12):3295–304.View ArticlePubMedGoogle Scholar
  10. Van Peer R, Niemann G, Schippers B. Induced resistance and phytoalexin accumulation in biological control of Fusarium wilt of carnation by Pseudomonas sp. strain WCS 417 r. Phytopathology. 1991;81(7):728–34.View ArticleGoogle Scholar
  11. Wang Y, Ohara Y, Nakayashiki H, Tosa Y, Mayama S. Microarray analysis of the gene expression profile induced by the endophytic plant growth-promoting rhizobacteria, Pseudomonas fluorescens FPT9601-T5 in Arabidopsis. Mol Plant-Microbe Interact. 2005;18(5):385–96.View ArticlePubMedGoogle Scholar
  12. Wang W, Chen LN, Wu H, Zang H, Gao S, Yang Y, Xie S, Gao X: Comparative proteomic analysis of rice seedlings in response to inoculation with Bacillus cereus. Letters in applied microbiology 2013.Google Scholar
  13. Kandasamy S, Loganathan K, Muthuraj R, Duraisamy S, Seetharaman S, Thiruvengadam R, et al. Understanding the molecular basis of plant growth promotional effect of Pseudomonas fluorescens on rice through protein profiling. Proteome Sci. 2009;7(1):47.View ArticlePubMed CentralPubMedGoogle Scholar
  14. Mark GL, Dow JM, Kiely PD, Higgins H, Haynes J, Baysse C, et al. Transcriptome profiling of bacterial responses to root exudates identifies genes involved in microbe-plant interactions. Proc Natl Acad Sci U S A. 2005;102(48):17454–9.View ArticlePubMed CentralPubMedGoogle Scholar
  15. Matilla MA, Espinosa-Urgel M, Rodríguez-Herva JJ, Ramos JL, Ramos-González MI. Genomic analysis reveals the major driving forces of bacterial life in the rhizosphere. Genome Biol. 2007;8(9):R179.View ArticlePubMed CentralPubMedGoogle Scholar
  16. Fan B, Carvalhais LC, Becker A, Fedoseyenko D, von Wirén N, Borriss R. Transcriptomic profiling of Bacillus amyloliquefaciens FZB42 in response to maize root exudates. BMC Microbiol. 2012;12(1):116.View ArticlePubMed CentralPubMedGoogle Scholar
  17. Nakano MM, Marahiel M, Zuber P. Identification of a genetic locus required for biosynthesis of the lipopeptide antibiotic surfactin in Bacillus subtilis. J Bacteriol. 1988;170(12):5662–8.PubMed CentralPubMedGoogle Scholar
  18. Wang S, Wu H, Qiao J, Ma L, Liu J, Xia Y, et al. Molecular mechanism of plant growth promotion and induced systemic resistance to tobacco mosaic virus by Bacillus spp. J Microbiol Biotechnol. 2009;19(10):1250–8.View ArticlePubMedGoogle Scholar
  19. Xia Y, Xie S, Ma X, Wu H, Wang X, Gao X. The purL gene of Bacillus subtilis is associated with nematicidal activity. FEMS Microbiol Lett. 2011;322(2):99–107.View ArticlePubMedGoogle Scholar
  20. Barbour W, Hattermann D, Stacey G. Chemotaxis of Bradyrhizobium japonicum to soybean exudates. Appl Environ Microbiol. 1991;57(9):2635–9.PubMed CentralPubMedGoogle Scholar
  21. Baudoin E, Benizri E, Guckert A. Impact of artificial root exudates on the bacterial community structure in bulk soil and maize rhizosphere. Soil Biol Biochem. 2003;35(9):1183–92.View ArticleGoogle Scholar
  22. Rudrappa T, Czymmek KJ, Paré PW, Bais HP. Root-secreted malic acid recruits beneficial soil bacteria. Plant Physiol. 2008;148(3):1547–56.View ArticlePubMed CentralPubMedGoogle Scholar
  23. Bacilio-Jiménez M, Aguilar-Flores S, Ventura-Zapata E, Pérez-Campos E, Bouquelet S, Zenteno E. Chemical characterization of root exudates from rice (Oryza sativa) and their effects on the chemotactic response of endophytic bacteria. Plant Soil. 2003;249(2):271–7.View ArticleGoogle Scholar
  24. Kirk G, Santos E, Findenegg G. Phosphate solubilization by organic anion excretion from rice (Oryza sativa L.) growing in aerobic soil. Plant Soil. 1999;211(1):11–8.View ArticleGoogle Scholar
  25. Yoshida K-i, Kobayashi K, Miwa Y, Kang C-M, Matsunaga M, Yamaguchi H, et al. Combined transcriptome and proteome analysis as a powerful approach to study genes under glucose repression in Bacillus subtilis. Nucleic Acids Res. 2001;29(3):683–92.View ArticlePubMed CentralPubMedGoogle Scholar
  26. Alekshun MN, Levy SB. Regulation of chromosomally mediated multiple antibiotic resistance: the mar regulon. Antimicrob Agents Chemother. 1997;41(10):2067.PubMed CentralPubMedGoogle Scholar
  27. Aravind L, Anantharaman V, Balaji S, Babu MM, Iyer LM. The many faces of the helix‐turn‐helix domain: Transcription regulation and beyond. FEMS Microbiol Rev. 2005;29(2):231–62.PubMedGoogle Scholar
  28. Miller PF, Sulavik MC. Overlaps and parallels in the regulation of intrinsic multiple‐antibiotic resistance in Escherichia coli. Mol Microbiol. 1996;21(3):441–8.View ArticlePubMedGoogle Scholar
  29. Bouillant M, Jacoud C, Zanella I, Favre-Bonvin J, Bally R. Identification of 5-(12-heptadecenyl)-resorcinol in rice root exudates. Phytochemistry. 1994;35(3):768–71.View ArticleGoogle Scholar
  30. Kato-Noguchi H. Allelopathic substance in rice root exudates: Rediscovery of momilactone B as an allelochemical. J Plant Physiol. 2004;161(3):271–6.View ArticlePubMedGoogle Scholar
  31. Bashan Y, Holguin G. Azospirillum-plant relationships: environmental and physiological advances (1990-1996). Can J Microbiol. 1997;43(2):103–21.View ArticleGoogle Scholar
  32. Ongena M, Jacques P. Bacillus lipopeptides: versatile weapons for plant disease biocontrol. Trends Microbiol. 2008;16(3):115–25.View ArticlePubMedGoogle Scholar
  33. Raaijmakers JM, de Bruijn I, de Kock MJ. Cyclic lipopeptide production by plant-associated Pseudomonas spp.: diversity, activity, biosynthesis, and regulation. Mol Plant Microbe Interact. 2006;19(7):699–710.View ArticlePubMedGoogle Scholar
  34. Daniels R, Vanderleyden J, Michiels J. Quorum sensing and swarming migration in bacteria. FEMS Microbiol Rev. 2004;28(3):261–89.View ArticlePubMedGoogle Scholar
  35. Capdevila S, Martinez-Granero FM, Sanchez-Contreras M, Rivilla R, Martin M. Analysis of Pseudomonas fluorescens F113 genes implicated in flagellar filament synthesis and their role in competitive root colonization. Microbiology. 2004;150(Pt 11):3889–97.View ArticlePubMedGoogle Scholar
  36. Kinsinger RF, Shirk MC, Fall R. Rapid surface motility in Bacillus subtilis is dependent on extracellular surfactin and potassium ion. J Bacteriol. 2003;185(18):5627–31.View ArticlePubMed CentralPubMedGoogle Scholar
  37. Archibald A, Hancock I, Harwood C: Cell wall structure, synthesis, and turnover. Bacillus subtilis and other gram-positive bacteria American Society for Microbiology, Washington, DC 1993:381-410.Google Scholar
  38. SASAKI Y, ARAKI Y, ITO E. Structure of teichoic‐acid—glycopeptide complexes from cell walls of bacillus cereus AHU 1030. Eur J Biochem. 1983;132(1):207–13.View ArticlePubMedGoogle Scholar
  39. Shibaev VN, Duckworth M, Archibald AR, Baddiley J. The structure of a polymer containing galactosamine from walls of Bacillus subtilis 168. Biochem J. 1973;135(2):383.PubMed CentralPubMedGoogle Scholar
  40. Miwa Y, Fujita Y. Involvement of two distinct catabolite-responsive elements in catabolite repression of the Bacillus subtilis myo-inositol (iol) operon. J Bacteriol. 2001;183(20):5877–84.View ArticlePubMed CentralPubMedGoogle Scholar
  41. Arkhipova T, Veselov S, Melentiev A, Martynenko E, Kudoyarova G. Ability of bacterium Bacillus subtilis to produce cytokinins and to influence the growth and endogenous hormone content of lettuce plants. Plant Soil. 2005;272(1–2):201–9.View ArticleGoogle Scholar
  42. Idris EE, Iglesias DJ, Talon M, Borriss R. Tryptophan-dependent production of indole-3-acetic acid (IAA) affects level of plant growth promotion by Bacillus amyloliquefaciens FZB42. Mol Plant-Microbe Interact. 2007;20(6):619–26.View ArticlePubMedGoogle Scholar
  43. Lee J-M, Zhang S, Saha S, Santa Anna S, Jiang C, Perkins J. RNA expression analysis using an antisense bacillus subtilis genome array. J Bacteriol. 2001;183(24):7371–80.View ArticlePubMed CentralPubMedGoogle Scholar

Copyright

© Xie et al.; licensee BioMed Central. 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Advertisement
